This article contains steps on setting up a Multi-Instance Server in which a single server could have several registered instance servers to accommodate multiple clients.
Creating Instances.cfg file
This instances configuration file contains setup information on each server instances that will be created. But before creating this file, we need to know how many instances can be created by checking the registered Olation server license.

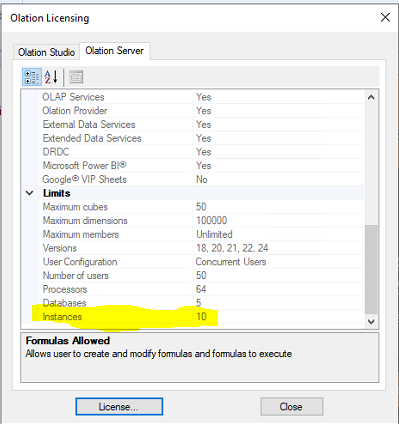

| Based on this example, I have a limit of 10 instance that I can create. |  |
The Instances.cfg should be created on C:\ProgramData\Olation, below is an example of the setup information of a single instance server.
[Olation Service 9990]
Port=9990
Secure=0
Description= Olation Server Description 9990
Configuration=Server_9990.cfg
License=Olation_9990.olf
LogSettings=Settings_9990.cfg
| Flag | Purpose |
[Olation Service 9990] | The Olation Service instance name to be used |
| Port | The port number to be used by the Olation Service instance |
| Secure | Setting the instance whether is Olation Studio OpenSSL enable or not. 1 for enable and 0 for disable |
| Description | Olation Service Description |
| Configuration | This will be created upon creating or opening a Olation Database and it contains the database connection info. |
| License | This will be the file name of the license to be used on this server instance |
| LogSettings | This setting configuration file is manually created to set the log file information to be use on this server instance. |

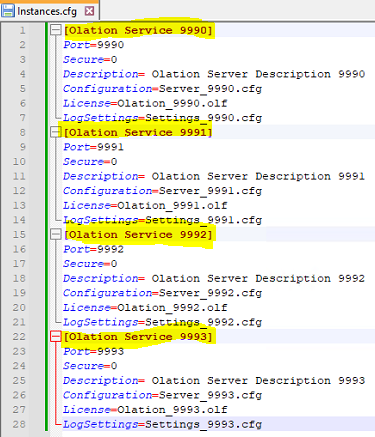

For this example let create 4 Instance on the Instances.cfg file as shown below.
| Base on this example I have setup the instance information for 4 Instances which has it on ports, license file, server config file, and log setting files. NOTE: it is best practice have a naming convention on the instance information with the port number as suffix. |  |
Creating the log Settings.cfg files for each sever instance
The log settings files which are indicated on each instances on the Instances.cfg would not hinder the setup/installation of the server instances but it is a good practice to create them before hand.
These log settings config files should be created on C:\ProgramData\Olation. To consolidate all the log file per server instance it is best to create a Log folder on C:\ProgramData\Olation

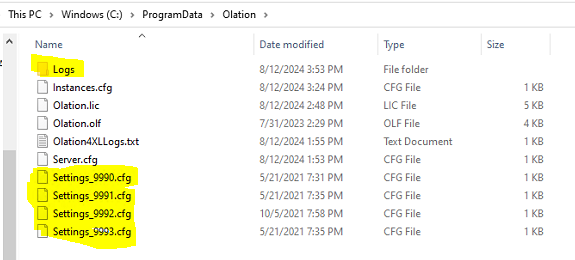

| Base on the Instance.cfg LogSettings info per instance, I have created 4 log setting file which are Settings_9990.cfg Settings_9991.cfg Settings_9992.cfg Settings_9993.cfg Have also created a Logs folder to consolidate all the log files |  |
| The content for each log setting file are as follows | |
| Settings_9990.cfg | [Logging] Enabled=1 File=C:\ProgramData\Olation\Logs\olationlog_9990.txt MaxSize=10 Advanced=1 |
| Settings_9991.cfg | [Logging] Enabled=1 File=C:\ProgramData\Olation\Logs\olationlog_9991.txt MaxSize=10 Advanced=1 |
| Settings_9992.cfg | [Logging] Enabled=1 File=C:\ProgramData\Olation\Logs\olationlog_9992.txt MaxSize=10 Advanced=1 |
| Settings_9993.cfg | [Logging] Enabled=1 File=C:\ProgramData\Olation\Logs\olationlog_9993.txt MaxSize=10 Advanced=1 |
Setup/Creating the Olations Server Service instances
To create the Olation Server Service Instances we need to run a OLAService.exe command on the command prompt which is run as administrator.

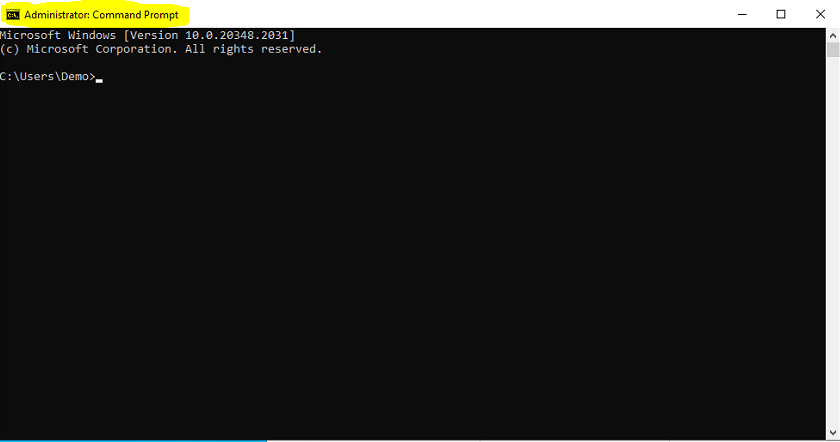

| Open command prompt as Administrator |  |

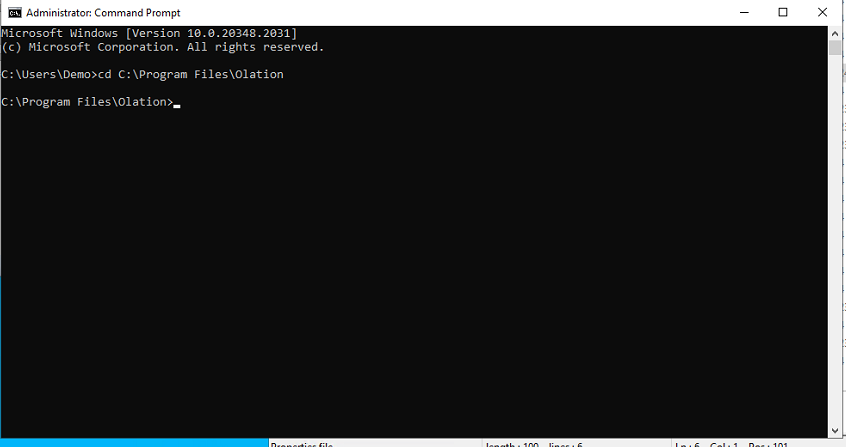

| Run command CD C:\Program Files\Olation to change directory to C:\Program Files\Olation. |  |

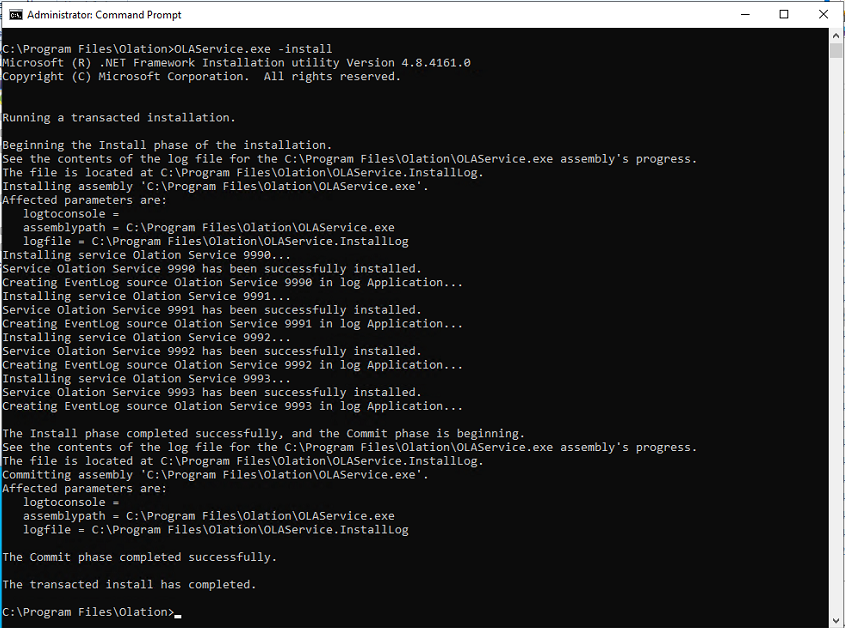

| Run command OLAService.exe -install to read the Instance,cfg file and create the Olation Server Service Instances |  |

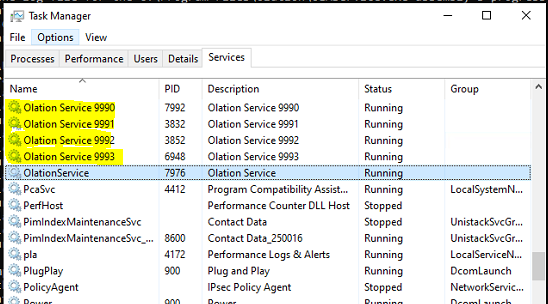

| Go to Task Manager to confirm all the Olation Server Service Instance are created and start the services |  |
Register Olation Server Instance on Olation Studio
This is where we will create or register the Olation Server Instance to license it and create a sample database per instance for our slice testing later powerexcel.

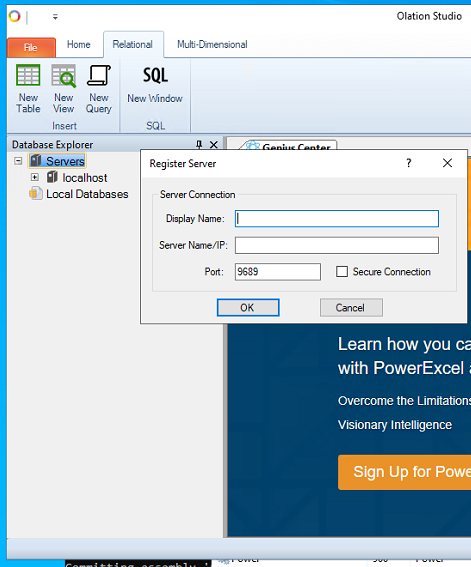

| Open Olation Studio and Register a Server |  |

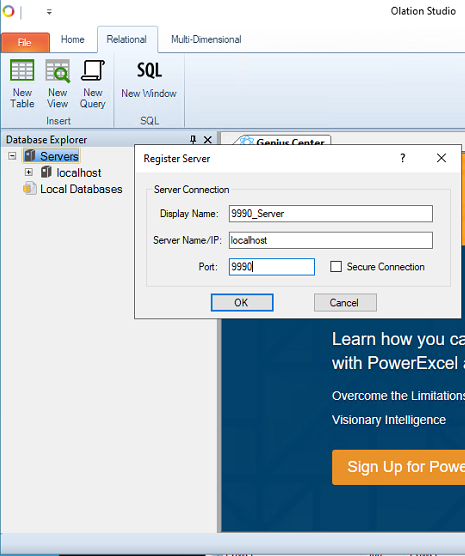

| Let register the Olation Server Instance with the port number 9990 by setting it up as follows. Display Name: 9990_Server ServerName/IP: localhost Port: 9990 Secure Connection: Disable |  |

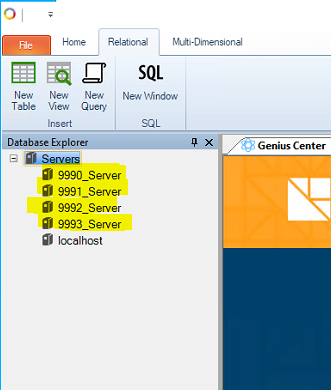

| Repeat this step to register all the Olation Server instances Note: Change the port per each server instances |  |

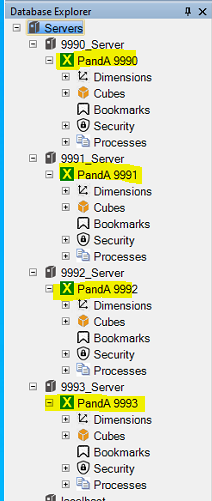

| For our test, Let us create 4 Nexus DB Panda Model for each Server Instance and name them using the instance port as its suffix. |  |
Creating Server Reference Key on Olation WebService per Server Instance
A Server Reference Key is used to identify which machine and instance the Olation WebService will connect to.

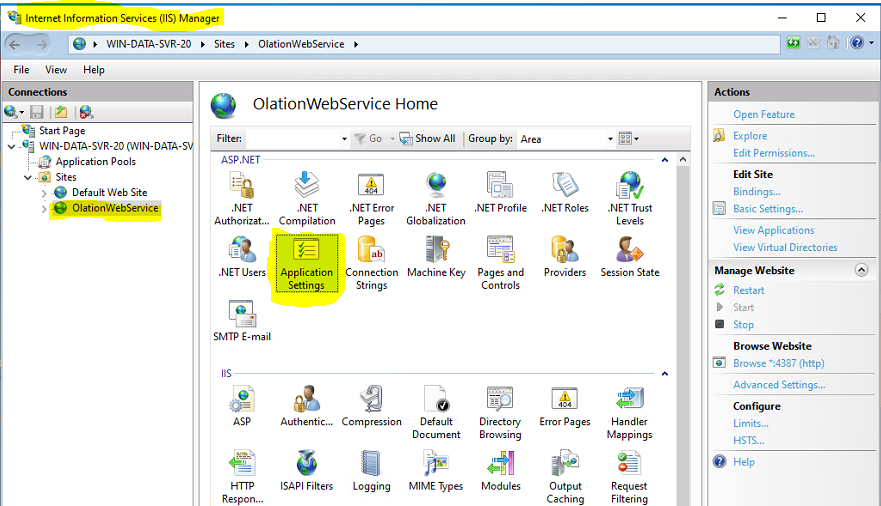

| - Open IIS - Select Olation WebService Site - Open Application Settings |  |

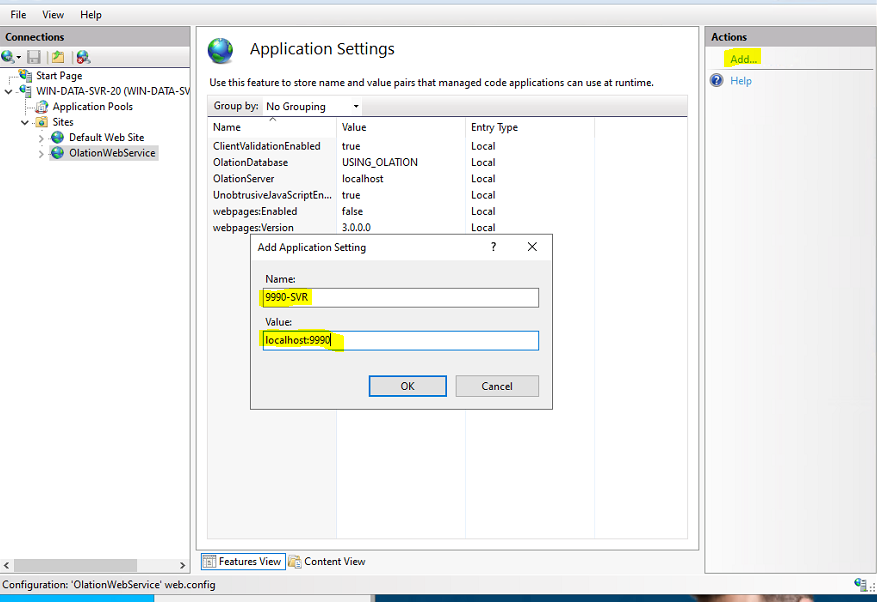

| Let us Add a Server Reference Key for the 4 instance we created. - Click Add - On Name - Input a Server Reference Key - On Value - Input the Server IP address where the Olation server is located then followed by colon ":" then the port number used by the specific server instance. |  |

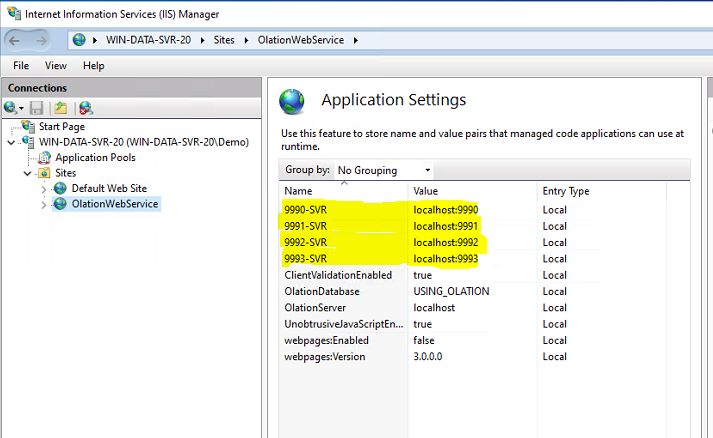

| For our 4 Olation Server Instance example the we going the Server Reference Key Below 9990-SVR localhost:9990 9991-SVR localhost:9991 9992-SVR localhost:9992 9993-SVR localhost:9993 |  |
